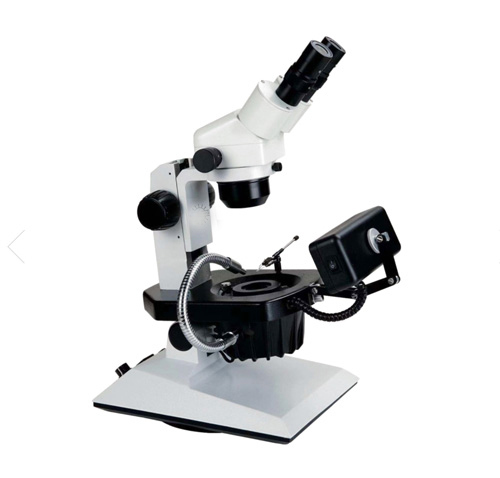

ConXport Inclined Trinocular Gemological Microscope, For Laboratory

Send Inquiry

Request To Call Back

ConXport Inclined Trinocular Gemological Microscope, For Laboratory

Price 55000 INR/ Piece

Get a Price/Quote

MOQ : 2 Pieces

ConXport Inclined Trinocular Gemological Microscope, For Laboratory Specification

Focus System
Coarse and fine coaxial knob adjustment.

Spare Parts
Supplied with spare halogen/LED bulbs and fuse.

View Head
Trinocular, inclined and rotatable.

Features
Darkfield illumination, inclined trinocular head, rotatable stage, gem clamps, robust build for laboratory use.

Theory
Highly precise optical system suitable for gemological research and analysis.

Drawtube
Trinocular, inclined at 45 for comfortable viewing and camera attachment.

Sensor
Not specified (depends on camera used).

Resolution
Optical resolution depends on objectives; up to 1000x total magnification clarity.

Interface
Trinocular port for imaging devices and cameras.

Frame Rate
Based on external camera used (not inherent to microscope body).

Focal Distance
Adjustable via coarse and fine focusing knobs.

Magnification
Zoom range 10X to 80X (using changeable objectives and eyepieces).

Dimensions
Approx. 370mm x 250mm x 380mm (L x W x H).

Focus Range
Coarse and fine adjustment provided for precision focusing.

Eyepieces
Wide field eyepieces, typically WF10X (supplied).

Eyepiece Tube
Inclined trinocular tube at 45, anti-fungal & anti-reflection coating.

Illumination
Reflected and transmitted halogen/LED light with adjustable intensity.

Coarse Adjustment Range
Provided for large-scale sample focusing.

Fine Adjustment Range
Precise control for high-resolution focusing.

Working Stage
Rotatable gemstone plate with gem clamps and dark field attachment.

Still Image Capture Resolution
Depends on attached cameras specification.

Video Capture Resolution
Depends on attached cameras specification.

Image Format
Depends on attached camera (typically JPEG, BMP, etc.).

Interpupillary Distance
Adjustable from 55mm to 75mm.

Objective Achromatic
Achromatic objectives for clear, color-corrected images.

Condenser
Darkfield condenser with diffuser for gem analysis.

Light Source
Fitted halogen/LED lamp (both transmitted and incident light).

ConXport Inclined Trinocular Gemological Microscope, For Laboratory Trade Information

Minimum Order Quantity
2 Pieces

FOB Port
Delhi

Payment Terms
Letter of Credit (L/C), Paypal, Telegraphic Transfer (T/T)

Supply Ability
15 Pieces Per Week

Delivery Time
6-7 Days

Sample Available
Yes

Sample Policy
If order is confirmed we will reimburse the sample cost

Main Export Market(s)
Australia, South America, Eastern Europe, Western Europe, Middle East, Central America, Asia, North America, Africa

Main Domestic Market
All India

Certifications
ISO,CE,FDA,WHO-GMP

About ConXport Inclined Trinocular Gemological Microscope, For Laboratory

SPECIFICATIONS:

1.Viewing Head: Inclined Binocular
2. Eyepiece: WF 10X
3. Objective: Zoom 0.75x-5x
4. Incident Light: Halogen lamp 12V/10W.
5. Transmitted Light: Halogen lamp 12V/10W.
6. with Jewel tweezers
7. Dark field working stage
8. Working Distance: 113mm

Versatile Laboratory Application

Built for professional gemologists and laboratory use, this microscope delivers high optical precision for gemstone identification and research. Its ergonomic design, adjustable settings, and stable construction enable long-duration analysis with minimal fatigue, while universal power compatibility (AC 220V/110V) simplifies installation in diverse laboratory environments.

Advanced Imaging & Illumination

Equipped with a trinocular port for easy camera integration, the microscope enables both visual and digital documentation. The dual illumination system, offering reflected and transmitted halogen/LED light with intensity control, accommodates a wide range of sample types and enhances visualization in both brightfield and darkfield modes.

Stability & Sample Handling

Featuring a heavy anti-vibration base and spring-loaded gem clamps, the instrument ensures sample stability during fine inspection. The rotatable gemstone plate and reversible stage enhance accessibility, allowing for detailed examination from multiple angles and under varied lighting conditions.

FAQs of ConXport Inclined Trinocular Gemological Microscope, For Laboratory:

Q: How does the ConXport Inclined Trinocular Gemological Microscope improve gemstone analysis?

A: It provides high magnification clarity (up to 1000x), darkfield illumination, and a rotatable stage plate with gem clamps, enabling precise, stable sample viewing and facilitating accurate research, grading, and documentation.

Q: What process should I follow to attach a camera for capturing images or videos?

A: Simply connect a compatible imaging device or camera to the trinocular port. Image and video resolution as well as frame rate will depend on the external cameras specifications, allowing flexible documentation methods.

Q: Where can this microscope be used?

A: It is primarily designed for laboratory settings, gemological institutes, and professional gem graders, but its universal power input and robust build also make it suitable for academic research or industrial environments.

Q: What benefits does the darkfield illumination provide during examination?

A: Darkfield illumination highlights inclusions and enhances gemstone internal structure visibility by illuminating specimens from the sides, which is essential for quality assessment and scientific analysis.

Q: When is coarse and fine focus adjustment needed during operation?

A: Coarse focusing quickly brings samples into view, while fine adjustment is used for detailed, high-resolution observation, particularly when examining microscopic features or grading valuable stones.

Q: How is sample stability maintained during intense inspection?

A: The microscope features an anti-vibration base and spring-loaded clamps that secure gemstones on the stage, ensuring minimal movement and consistent focus throughout examinations.
