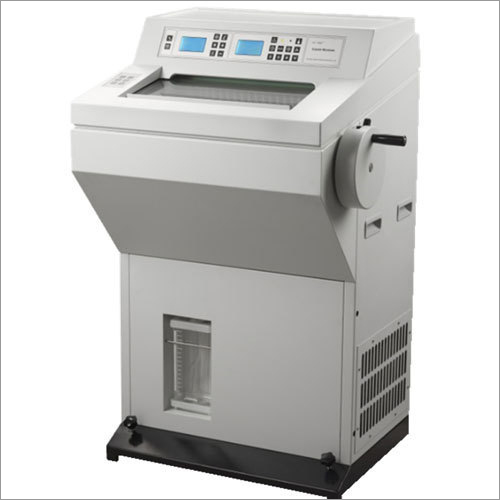

ConXport Automatic Cryostat Microtome

Get a Price/Quote

ConXport Automatic Cryostat Microtome Specification

Display Type
Backlit Digital

Phase
Single Phase

Automation Grade
Automatic

Properties
Ultra-fine sectioning, Precise Temperature Control, Rapid Freezing Chamber

Product Type
Automatic Cryostat Microtome

Height
1190 mm

Accuracy
±1°C

Power
400 W

Storage Capacity
Up to 40 cassettes

Suitable For
Medical, Clinical, Research Labs

Application
Histopathology/Cytology Laboratories

Temperature Range
-35°C to -5°C

Humidity Range
20% ~ 80% RH

Weight
Approx. 135 kg

Color Code
White & Blue

Material
Stainless Steel

Treatment Type
Cryogenic

Dimension (L*W*H)
730 x 720 x 1190 mm

Shape
Rectangular

Frequency
50 Hz

Use
Frozen section tissue preparation for rapid microscopic diagnosis

Function
Cryosectioning, Rapid sample freezing, Section thickness adjustment

Display
LCD Digital Display

Voltage
220 V

Power Source
Electric

Refrigerant
CFC Free

Environment Sensor
Integrated Chamber Temp & Humidity

Cabinet Construction
Double Door with Insulation

Illumination
LED Internal Lighting

Specimen Holder
Universal Quick Release Clamp

Compressor Type
High Efficiency Hermetic Sealed Compressor

Preset Programs
User Programmable for Sectioning Needs

Noise Level
60 dB

Microtome Type
Rotary Microtome

Cryochamber Capacity
22 Liters

Defrosting Function
Manual/Automatic

Safe Lock Feature
Emergency Stop Button

Section Thickness Setting
1-40 m (Increment: 1 m)

ConXport Automatic Cryostat Microtome Trade Information

FOB Port
Delhi

Payment Terms
Letter of Credit (L/C), Telegraphic Transfer (T/T), Paypal

Supply Ability
15 Per Week

Delivery Time
6-7 Days

Sample Available
Yes

Sample Policy
If order is confirmed we will reimburse the sample cost

Main Export Market(s)
Australia, North America, Eastern Europe, Middle East, Central America, South America, Asia, Western Europe, Africa

Main Domestic Market
All India

Certifications
ISO,CE,FDA,WHO-GMP

About ConXport Automatic Cryostat Microtome

Specimen retraction function, protects specimen from blade injury.
Trimming (Motorized) thickness range 10 100 micron in 10 micron / cutting button makes it easy to switch from trim and section mode.

TECHNICALSPECIFICATIONS:

Vertical specimen stroke length will be 55-60mm, with a horizontal specimen feed of 25-30mm.
Specimen size (Section) 50x80mm.
The cryostat is a floor standing model with power requirements of 220V , 50-60Hz.
Maintenance free microtome with section thickness setting range from 0 to 60m will be available .

20-60m in 5m increments

Motorized coarse feed preferably at two speeds.
Rabid 0.8mm/sec. Slow-0.2mm/sec.
Disposable blade holder system with lateral displacement and integrated glass anti-roll guide will be available.
Instrument will have closed drainage system to allow controlled disposal of fluids.
Automatic & manual chamber defrost facility will be available with one automatic defrost cycle /24 hours.
Duration of the defrost cycle will be 8-12minutes/24 hours duration.
Manual disinfection facility will be available.
System is with disposable blade system.
Facility of UV lamp decontamination will be available.
Stainless steel re-useable knife holder as standard accessory.
Cryo chamber temperature setting should be 0C to -35C. Cooling via two separate compressor system with specimen cooling.
Specimen cooling facility available should be in temperature range of -10C to -50.
Maximum cooling time up to maximum low temperature should be less than 4 hours after start up.
Actively cooled quick freezing shelf should be at -45C.
Specimen storage shelf should store up to 8 chucks.
Vertical specimen stroke length available should be 50-60mm with a horizontal specimen feed of 25-30mm.
Motorized coarse feed preferably at two speeds. Rapid 0-8mm/sec. Slow 0.2mm/sec.
Glass anti-roll guide with anti static feature to facilitate perfect stretching of sections should be available.

Superior Cryosectioning Performance

The ConXport Automatic Cryostat Microtome delivers ultra-fine sectioning with adjustable thickness from 1 to 40 m, facilitating detailed microscopic examination. Its advanced freezing capabilities allow for rapid tissue preparation, ensuring prompt diagnosis in laboratory settings. The robust 22-liter cryochamber accommodates up to 40 cassettes for efficient workflow.

Precision Temperature and Humidity Control

Featuring an integrated environmental sensor, this microtome maintains precise chamber temperature and humidity (20%~80% RH, 1C accuracy). The high-efficiency compressor and rapid freezing chamber guarantee consistent conditions, critical for high-quality cryosections.

User-Centric Design and Safety

Designed for ease of use, the microtome features a user-programmable LCD backlit digital display, universal quick release clamp, and emergency stop safe lock. Its insulated stainless-steel cabinet with double doors ensures optimal safety and durability for busy clinical labs.

FAQs of ConXport Automatic Cryostat Microtome:

Q: How does the ConXport Cryostat Microtome ensure precise tissue sectioning?

A: The microtome uses a rotary mechanism with section thickness settings adjustable from 1 to 40 m in 1 m increments. Combined with a universal quick release clamp and integrated environmental sensors, it guarantees consistent, ultra-fine tissue sections essential for diagnostic applications.

Q: What is the process for preparing frozen tissue samples using this microtome?

A: To prepare samples, tissues are quickly frozen in the rapid freezing chamber. The rotary microtome then sections the frozen tissue at the desired thickness. Programmable sectioning programs and an intuitive digital display streamline the entire workflow, enabling rapid, accurate results.

Q: When should the defrosting function be used, and how is it operated?

A: The unit features both manual and automatic defrosting options. Defrosting should be performed routinely or when ice build-up is detected in the chamber, to maintain optimal performance. The user can initiate defrosting via the control panel, ensuring uninterrupted operation.

Q: Where is this cryostat microtome ideally used?

A: This equipment is best suited for histopathology and cytology laboratories in clinical, medical, and research settings. Its design addresses the fast-paced environment of hospitals and diagnostic centers requiring rapid and reliable frozen section analysis.

Q: What safety features are integrated into the microtome?

A: Key safety elements include an emergency stop button, insulated double-door stainless steel cabinet, and controlled internal LED illumination for safe and convenient usage during sample processing.

Q: How can users benefit from the programmable sectioning settings?

A: User-programmable sectioning settings allow customization tailored to specific protocols, improving consistency, efficiency, and accuracy in tissue preparation for diverse diagnostic or research requirements.
