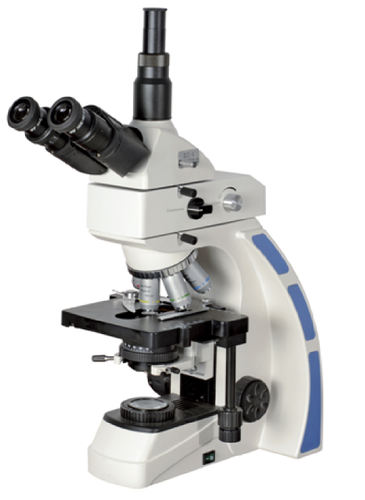

ConXport . DIGITAL MICROSCOPE

Get a Price/Quote

ConXport . DIGITAL MICROSCOPE Specification

Focus System
Coaxial coarse and fine adjustment system

View Head
Trinocular (Digital photo/video via camera port)

Features
Live image preview, photo/video recording, calibration software included

Spare Parts
Fuses, power cable, software CD, dust cover

Theory
Advanced digital imaging system for microscopic observation and analysis.

Drawtube
Trinocular

Sensor
High-resolution CMOS sensor

Resolution
5.0 Megapixels

Interface
USB 2.0/3.0 compatible

Frame Rate
Up to 30 FPS (depending on resolution/PC)

Focal Distance
0 adjustable

Magnification
40x 1600x (Digital and Optical)

Dimensions
380 x 180 x 320 mm (approx.)

Focus Range
Coarse and fine adjustment available

Eyepieces
Wide field WF10x/20mm, WF16x/13mm

Eyepiece Tube
Inclined at 45, rotatable 360

Illumination
Built-in LED with adjustable intensity

Coarse Adjustment Range
15mm

Fine Adjustment Range
0.002mm

Working Stage
Double layer mechanical, 125 115 mm, travel range 70 30 mm

Still Image Capture Resolution
Up to 2592 x 1944 pixels

Video Capture Resolution
Up to 1080p

Image Format
JPEG, BMP, TIFF

Interpupillary Distance
55 75 mm

Objective Achromatic
4x, 10x, 40x (spring), 100x oil (spring)

Condenser
Abbe NA 1.25 with iris diaphragm

Light Source
LED lamp, built-in, variable brightness

Body Material
Powder-coated, anti-rust, sturdy metal frame

Camera Mount
C-mount digital camera adapter included

Power Supply
AC 220V/110V, 50Hz/60Hz

Operating System Compatibility
Windows XP/7/8/10 and Mac OS support

Software Functions
Measurement, annotation, and real-time sharing

Stage Movement
X-Y coaxial control

Digital Zoom
Up to 4x (software assisted)

Weight
Approx. 7.5 kg

Operating Environment
Temperature 10C40C, Humidity <85%

ConXport . DIGITAL MICROSCOPE Trade Information

FOB Port
Delhi

Payment Terms
Letter of Credit (L/C), Paypal, Telegraphic Transfer (T/T)

Supply Ability
15 Per Week

Delivery Time
6-7 Days

Sample Available
Yes

Sample Policy
If order is confirmed we will reimburse the sample cost

Main Export Market(s)
Western Europe, Australia, South America, Eastern Europe, Middle East, Africa, Central America, Asia, North America

Main Domestic Market
All India

Certifications
ISO,CE,FDA,WHO-GMP

About ConXport . DIGITAL MICROSCOPE

Display: 12.2 TFT, IPS TouchScreen, 360 Rotatable

Camera: Built in Camera withULTRACAM 5.0 MP Resolution

Software: Pre-loaded Captureand Measurement Software

Bluetooth: Bluetooth 4.0

Battery: Li-ion Battery, Upto 8 hours

OperatingSystem: Windows10 Home

Memory: 4GB, 64GB eMMC +64GB microSD card

I/OPorts: USB3.0 x 1, Mini-HDMI x 1, microSD card Slot x 1

SPECIFICATIONS:

Optical System:	High Contrast finite corrected Optical System.
Observation Head:	Trinocular head inclined at 30 with Inter-pupillary distance of 50-75mm with dioptric adjustment.
Nose-piece:	Quadruple revolving nose-piece ball Bearing type with proper click stops & rubber grip.
Eyepieces:	Wide Field 10x eye-piece with 18mm F.O.V, Anti-fungal & anti-reflection hard coated.
Mechanical Stage:	Double plate stage size 140mm X140mm. X/Y travel range 90mm X 65mm. Low drive right side movement controls. Double specimen holder clip.
Objectives:	Plan Achromatic objectives 4x (N.A. 0.10, W.D. 25mm) 10x (N.A. 0.25,W.D. 6.7mm), 40x (SL, N.A. 0.65, and W.D. 0.6 mm) and 100x (SL, Oil, N.A. 1.25, W.D. 0.17mm) antifungal, anti-reflection hard coated.
Condenser:	Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with Frosted white filter, antifungal & antireflection coated. Rack and pinion movements on stainless steel guides.
Focusing Control:	Co-axial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.2mm / rotation with maximum 2 micron scale increment.
Illumination:	LED 3.5W 3V illumination with variable control. Up to 100,000 hours of LED life.
Electronics:	Koehler Universal input 110V 240V AC, 50/60 Hz.
Camera:	ULTRACAM series 5 MP Camera with Image Analysis Software.
PC:	12.2 inches Windows based Tablet PC.

Precision Imaging for Versatile Applications

With a wide magnification range and high-resolution CMOS sensor, the ConXport Digital Microscope facilitates accurate analysis and clear documentation. The integrated camera mount and compatible USB interface streamline digital capture, while the trinocular head ensures efficient photo/video recording and live previews directly from the view head. These features make it a reliable instrument for laboratories, classrooms, and industrial quality inspection.

Advanced Software for Measurement and Sharing

Included software extends the microscopes functionality, enabling users to annotate images, perform measurements, and share results in real time. It supports various image formats such as JPEG and TIFF, along with calibration capabilities. Whether reviewing biological samples or inspecting materials, users can easily capture stills and videos with up to 1080p quality, optimizing collaborative research and documentation workflows.

FAQs of ConXport . DIGITAL MICROSCOPE:

Q: How can I connect and use the camera mount included with the ConXport Digital Microscope?

A: The microscope features a C-mount digital camera adapter, allowing easy attachment of compatible cameras. Simply connect your camera to the trinocular port and plug it via USB 2.0/3.0 into your computer, enabling live image preview and photo/video capture through the provided software.

Q: What operating systems are supported for using the microscopes digital functions?

A: ConXport Digital Microscope software is fully compatible with Windows XP, 7, 8, 10, and Mac OS. Installation is straightforward via the included CD, ensuring seamless operation and image transfer across supported platforms.

Q: Where can the microscope be effectively used?

A: Designed for laboratory, industrial, and educational environments, the powder-coated anti-rust frame and robust build ensure durability. Its advanced imaging system is ideal for fields such as biology, materials science, and electronics inspection.

Q: What is the process for capturing and annotating images or videos using this microscope?

A: After mounting the camera and launching the bundled software, users can view, capture, and annotate specimen images in formats like JPEG and TIFF. The software enables scaling, measurement, and real-time sharing of both photos and videos, supporting collaborative analysis.

Q: How does the microscopes focusing mechanism enhance observation?

A: The instrument offers a coaxial coarse and fine adjustment system, with ranges of 15mm and 0.002mm respectively. This allows precise focusing at magnifications from 40x to 1600x, ensuring sharp, clear images and reliable measurement data.

Q: What are the benefits of the built-in LED illumination system?

A: The adjustable LED lamp provides consistent, variable brightness with minimal heat generation. This ensures optimal lighting for various sample types and helps maintain image clarity during both microscopy and digital capture.

Q: When should the included calibration and measurement software be used?

A: Calibration and measurement functions are ideal for scientific analysis, quality control, or educational demonstrations. Use them whenever accurate dimensional analysis, annotation, or documentation of microscopic subjects is required.
