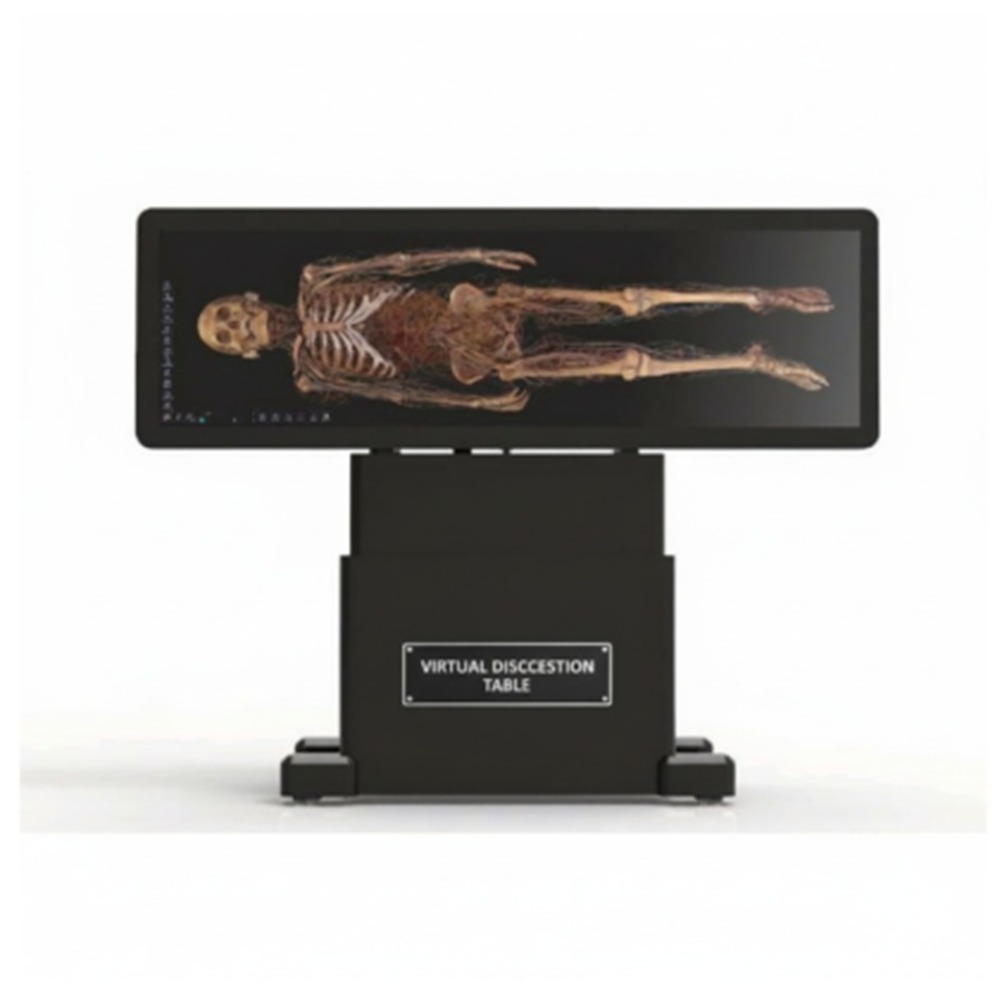

HD Virtual Dissection Table 88

Software Overview

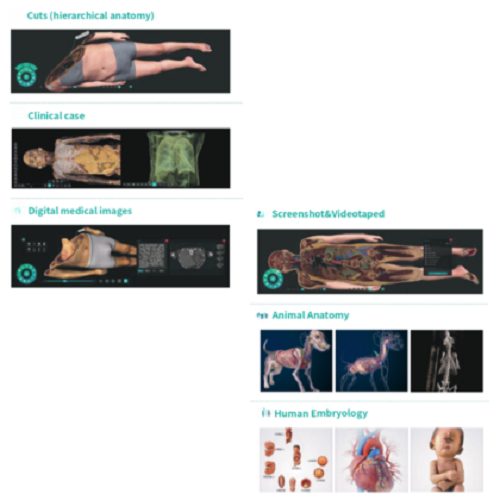

2.1 The system contains five parts: "Human anatomy","Digital human anatomy system", "Slice library" , " Clinical cases" and Embryology. Including two sets of specimen data for both males and females.

2.2 The 3D human body must be reconstructed with the real data of continuous tomography of human body without organic disease and no missing. The data shall be the tomographic data without missing segmental data. The structures such as teeth, male testis, appendix and fat layer must be intact.

2.3 The content of the software can provide practical anatomical reference materials for clinicians and postgraduates. The digital human anatomy system module is equipped with courseware, which consists of text, pictures, micro-video, and 3D anatomical structures, with rich content, clear images, and practical teaching, so that it is easy for students to conduct pre-course preview and post-course review.

2.4 The system content and functions are applicable to systematic anatomy, local anatomy, tomographic anatomy, etc.

2.5 The system has a certain degree of compatibility and will not conflict with other software.

2.6 The human continuous tomographic real data reconstructs the 3D human body as tomographic data without segmental data deficiency. Ensure that the original data human appendix is normal, teeth are normal, testicles are normal.

2.7 The software can be divided into visitor mode and login mode. Login mode can add structures to selected directories under personal account at will, and can perform automatic structure exhibition and fast jumping, which is convenient to use.

2.8 Windowed and minimized display can be articulated and switched with other digital teaching aids, such as PPT, etc.

2.9 The software system has passed the identification of national medical-related institutions. The software system shall have computer software copyright registration certificate, and has the software copyright, CE and FCC certification and test report.

3 Gross Anatomy

3.1 The 3D structure of the human body in the human anatomy module is digitally restored from male data (17000+ total layers of cross-section; resolution 13700*6340) and female data (16000+ total layers of cross-section; resolution 12000*5700).

3.2 The accuracy of 3D reconstruction in the software is 0.1mm, i.e., the reconstruction accuracy of 0.1mm*0.1mm*0.1mm in all three dimensions to ensure the clarity and accuracy of the restored anatomical structures.

3.3 The reconstructed 3D human body is identical to the original tomographic position, morphology and color, not the standard human body drawn according to the theory, and the surface color of all anatomical structures is not the manual pattern drawing, including arteries, veins, nerves and other structures are not artificially added pseudo-color.

3.4 Three-dimensional human anatomical structures are solid structures, i.e., the structure can still be cut open to see the real structural cross-section.

3.5 The module contains 2 data set of 1,814 structures for males and 2 data set of 3,322 structures for females; 168 spatial annotations, 149 bony annotations, and 392 structural annotations.

3.6 The specific numbers of male structures are 643 within the motor system, 85 in the digestive system, 64 in the respiratory system, 370 in the cardiovascular system, 7 in the urinary system, 32 in the male reproductive system, 136 in the sensory organs, 472 in the nervous system, 4 in the endocrine system, and 1 in the male skin.

3.7 The specific number of female structures is 1253 in the motor system, 114 in the digestive system, 90 in the respiratory system, 756 in the cardiovascular system, 17 in the urinary system, 35 in the female reproductive system, 132 in the sensory organs, 895 in the nervous system, 7 in the endocrine system, and 23 in the skin and fascia.

3.8 The background color of the three-dimensional scene can be customized to switch in order to clearly observe different structures.

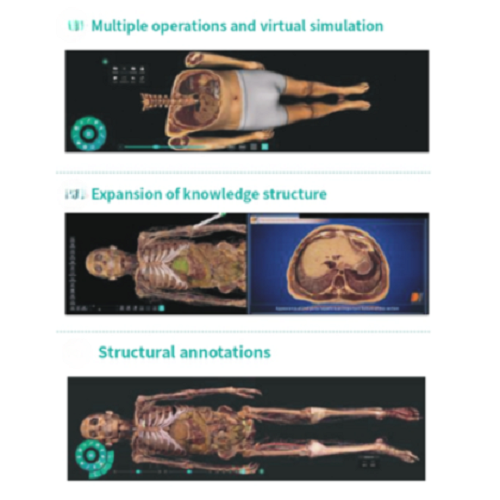

3.9 Rich knowledge system content: with structural annotation function, click on any structure or organization to support the display of detailed structural annotations. Refinement of structural organization, support for viewing translucent membrane-like tissue structure, can be cut and peeled.

3.10 Click on any bone structure to view its bony markings, each bony marking is colored and labeled with its name, click on the corresponding position of the name in the list of markings to highlight it, or click on the color area on the bone to display its name. The necessary structural distribution and spatial labeling are shown according to the structural characteristics of different bones. Each structure and landmark is labeled with its corresponding name, and the spatial labeling is supported to be displayed separately for more detailed observation.

3.11 Knowledge Links: Supports cross-referencing of knowledge on specific structures. You can simultaneously view the general tissue structure and its sections, related videos and cases, and other content.

3.12 Section Viewing:

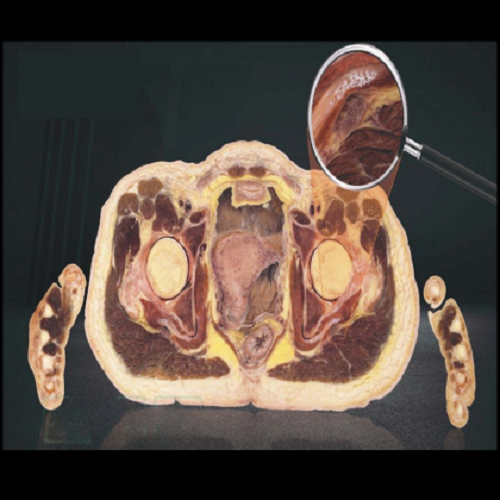

(1) Supports separate cross-section and CT scan images of the entire transverse sagittal coronal plane of the cadaver. Click the section button in the knowledge point to open the control function, and you can select the real human body section or CT image for observation. Click the section button below to switch the section angle, and the CT button to switch the section image.

(2) At the same time, you can switch the observation effect through the window width and window position buttons when observing the CT image. You can drag the sliding bar below to switch sections.

3.13 Operation panel:

(1) contains all functions of human anatomy module, 5 fingers fast response, instant operation. Contains more than 10 kinds of functional operations such as: cutting, marking, body position, brush, measurement, rotation, selection, catalog, virtual endoscopy, area labeling, etc.

(2) The four-week operating panel supports more operation options such as quick search, video recording, hierarchical dissection, linking of knowledge points, sequence creation, and many other functions. Support to choose between circular and rectangular ones.

3.14 Dragging bar contains operations that can simultaneously control the real-time adjustment of any section and display different hierarchical structures. It can be controlled repeatedly and restored with one click.

3.15 You can browse all the structures through the catalog, and you can also freely and selectively add or delete the organization of a system or precisely select certain organizations. At the same time, the catalog supports separate displays for a system or a specific organization.

3.16 Supports multi-language search to add and select the specified human structure, which can be further manipulated and observed. Support quick search, input structure name in search to quickly find specific structure, and support to display specific structure individually.
